I thought I was doing a bunch of different things over the past couple of years, but it turns out they were mostly variations on a theme: Processing Unstructured Text Data.
Taking USAJobs posts and extracting names of software tools and programming languages? Processing Unstructured Text Data.
Creating a website that uses ModernBERT to predict if something is edible? Processing Unstructured Text Data.
Writing grading rubrics for synthetic data? Pulling content from PowerPoints to create one-slide summaries? All of these are Processing Unstructured Text Data.
What Defines This Workflow?
In each case, I have a set of documents and I'm asking the same questions about each of them. For instance: what software tools and programming languages appear in each job posting?, what are the key talking points from these slides?, or did this set of directions generated by an LLM contain a particular step?
This is distinct from a RAG chatbot, where users ask an open-ended set of questions. In my workflows, we’re looking for the same pieces of information from each of the documents, and that might change over time, but we don't have to answer just any question that a user might ask—and there often aren't users directly interacting with the system, just reviewing output or taking an action based on the results.
That said, part of the evaluation portion of RAG systems does fit into this pattern. When you're using tools like RAGAS to evaluate your RAG pipeline, you're taking chunks of text that were passed to the LLM via the retrieval step, as well as the LLM's output, and you're asking questions like "is the output properly grounded in the source text?" That evaluation process is fundamentally the same workflow—processing unstructured text with the same question applied repeatedly.
This pattern clearly keeps showing up in my work—but it took me awhile to realize it, and to realize that there were things I'd learned from one project that I was bringing to other ones.
In this post, I'll break down this workflow pattern, discuss some tools for each of the steps, and share what I've learned about structuring these projects effectively.

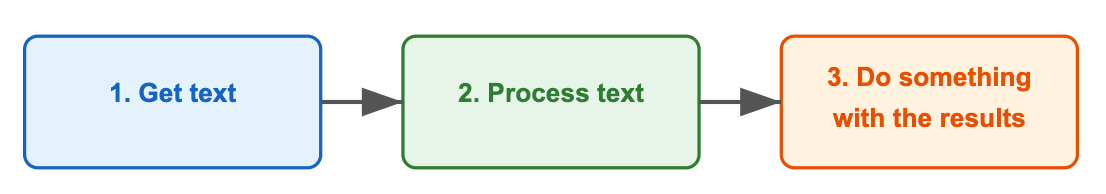

The Three-Part Pipeline
These projects typically follow a three-part structure:
Get text: This might involve getting text directly from users, pulling it from PowerPoints or PDFs, or collecting it from an LLM that you’re evaluating.
Process that text: This might involve an LLM, but it also might involve regular expressions for pattern matching, BERT for classification, or another single-purpose model like language classification or translation.
Do something with the results: Sometimes this is just making heat maps or other result visualizations. Sometimes I'm displaying results for a user, or populating PowerPoint slides or other templates with structured data.
Let's explore each stage of this pipeline in more detail, looking at the specific tools and approaches I've found useful.
Get Text
Sometimes the text might be given to you directly, sometimes you might have to pull it out of a document. But if a file has text, you can get it. There are packages for nearly any format.
Microsoft Office Files: python-docx for Word documents, python-pptx for PowerPoint files, PyPDF2 or pdfplumber for PDFs
Structured Data: pandas for Excel and CSV files, json for JSON data
Web content: beautifulsoup4 and requests for HTML and XML
Specialized Formats: Libraries for email archives like libraton, pytesseract for OCR, and various other packages for specialized formats you might encounter in your specific domain
There are also a couple of use cases where "getting the text" involves an LLM.
The major one is when the text you're processing is synthetic text data: text generated by an LLM that you’re then going to evaluate. I'll talk about that in the next section, because I use the same tools to interact with LLMs whether it's for getting text or processing text.
The other is a special case of "getting text" where you're extracting images and getting a multimodal model—I use Gemini—to "convert" them into a usable text description. In the project where I'm doing this, I use a specific prompt where I tell the model what I'm interested in: any text that's in the image, plus any data or anything else that conveys an overall meaning. I also say what to ignore, like colors and formatting—unless they're communicating data.
I haven't tested this yet to see how well it's working, but if I continue to develop that project, I should add in more formal testing of that step, because it's not the same as just pulling actual text out of documents—it's a machine learning model. There are other text processing tools which are also machine learning models: for instance, if you're OCRing text or transcribing text from audio. Depending on your use case, you may treat them like settled technology, or you may need to test their performance with your specific use case.
Process Text
Once you've gotten the text, the next step is processing it to extract meaningful information. This might be actual "extraction", in the sense of finding a substring in your text. Other times, this is a classification task: for instance, labeling output from a RAG as "grounded" or "not grounded" in the text chunks that were passed to it. Finally, this might be generative: synthesizing text to produce something like a summary.
Just like with getting text, there are specialized tools depending on what you're trying to accomplish:
Lexical Pattern Matching: Regular expressions, string operations, and fuzzy matching tools for extracting structured data or finding specific patterns in terms of the characters in the text.
Specialized Models: This is a huge bucket that includes language identification and translation, Named Entity Recognition (that's finding entity classes like names or places or people—or software tools and programming language), or BERT or related models for classification. You might use these models out of the box, or you might fine-tune them on your specific data.
LLMs: It's rare that I have a workflow for processing unstructured text data that doesn't involve LLMs. The lexical pattern matching and specialized models I use typically are add-ons to the main LLM workflow, which is sometimes classification and sometimes generative.
I wrote more here about the factors that affect whether I choose an LLM for any particular text processing problem. But when I am, the issues that affect both which models I use and which tools I access them with are:
The need to run models locally: I can't always send my data out to a proprietary LLM.
Swapping out models/providers: I want to switch models and providers easily in my code.
Getting 'structured output': I frequently want the LLM to return a JSON object with the output structured in a particular way—for instance, a list of programming languages, or a PASS or FAIL in one field and an explanation of the reasoning in another field.
There are many different tools that provide these features; I'm not doing a comprehensive rundown here. But the two I've used the most are Ollama, for running models locally, and LiteLLM, which can work either with non-local models or via Ollama for local ones. They both make it easy to swap out model names, which is especially good for testing or just for developing using a cheaper or faster model. And they both support structured outputs. (Although not every model allows this, no matter what tools you’re using to access it.)
Do Something With The Results
After processing the text data, we need to do something meaningful with that information. What we do with the results is just as varied as the previous steps.
Showing it directly to a user: I don't have this workflow very much, but you might have a tool that's designed to directly take input from users and return the model's answer directly, with no other context—or maybe with a probability score of some sort.
Summarizing it: Sometimes you don't need to show anyone the output directly, but you need to summarize it. For instance, if you're assessing different LLMs for their ability to remain grounded on different types of questions, you might want a heat map showing each LLM's performance on some set of test questions.
Populating a template: I'm starting to get into this with a project where I populate a PowerPoint template with various fields that an LLM has produced in the previous step. PowerPoint doesn't make this easy, but there are other file formats that are more amenable to being populated this way.
The Fourth Step: Monitoring
For projects that aren't one-off but ongoing, you'll likely want a monitoring process that flags when something breaks and gives you a path to fix it—for instance, for LLM classifiers, by switching models or tweaking prompts.
I haven't built this out yet, but I see two main approaches. One is leveraging natural labeling processes, where your models predict something that can be verified later through real-world outcomes or user actions, allowing your monitoring system to track performance using standard metrics.
But without that—and I suspect in most cases of this workflow, you won’t have that— you'll need periodic sampling and review of outputs. Maybe that can be done with a bigger, more capable LLM—but then, you have to monitor that one as well! More likely, you need human review.
The key here is being strategic about which outputs to select for review, maximizing the value of reviewer time. This strategy will be specific to your use case—for instance, prioritizing examples where confidence scores are borderline, in cases where you have confidence scores, or sampling from new types of documents your system hasn't seen before. Either way, this feedback loop is important for keeping text processing pipelines reliable over time.
Design Patterns and Ongoing Challenges
As these projects have evolved, I've developed certain patterns and practices to make the work more manageable. I'm not a software developer and I'm not writing software—but I still need code I can debug and build on.
Here are some practices I've adopted to varying degrees with that in mind:
Modular Components: I structure my code so text extraction, processing, and output generation are separate components that can be run independently. This is particularly important because the text processing step typically takes the longest and sometimes costs money, if I'm hitting an external LLM. I don't want to re-run it every time I'm tweaking my heat map formatting.
Ease of Testing: I need to be able to easily vary LLM models, and sometimes also parameters like token count, temperature, or prompt, to observe how they affect results. The simplest approach is using lists of models and temperatures in the code itself. For more complex scenarios, I use text or JSON files to populate different fields of a class which handles the details of the LLM call.
Logging: I've started structuring my code so that, each time anything runs, the results output into a new folder with a name that reflects the date and time it started running. This folder contains not just each of the outputs but also a log file with everything that happened. With LLMs, the benefit of generating these kinds of log files is higher, because if something breaks, you can dump the log file into an LLM and see if it immediately spots what broke.
That said, I'm still running into challenges where I feel like I need more background in software development.
The biggest one is that I can code quickly with LLMs, so I try stuff out that I wouldn't otherwise, like spinning up a new classifier or specialized model and getting it to work on a sample string. But that means there's a lot of code, and it's not necessarily structured in a way that's well-architected for my actual workflow.
For instance, if I have three different LLM classifiers, plus several smaller or specialized models—and I want to be able to easily change which of those I'm running as part of my text processing pipeline, as well as swap out prompts for my classifiers in order to test them—my code needs to be really modular and well-structured not just across each step of my workflow but within the text processing step itself.
This Pattern Is Everywhere
Now that I'm looking for it, I'm seeing this "process a stack of documents to extract the same set of information" pattern everywhere, in other peoples' use cases as well as mine: finding fraudulent billing in medical records, determining what project someone is working on for billing purposes based on their computer activity, writing new proposals based on previous work and new client requirements.
What makes this pattern distinct is that you're not answering ad-hoc questions – you're systematically extracting the same information or making the same judgments across a set of documents. Was there fraud? Which project should this bill to? What expertise do we have that's relevant to a new contract?
And even though each specific implementation might feel really different, having this mental model is helpful as far as not just re-using code, but re-using design patterns. If you're working with unstructured text data, I hope identifying this pattern helps you too.
